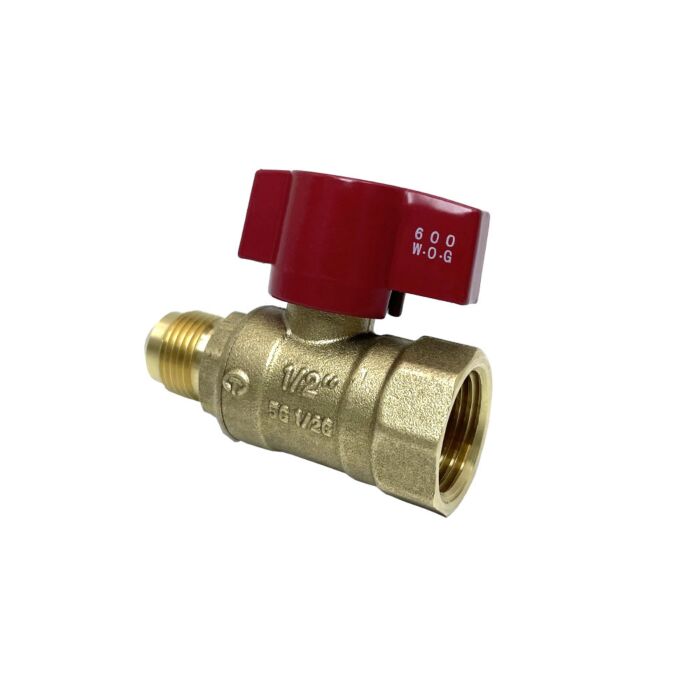

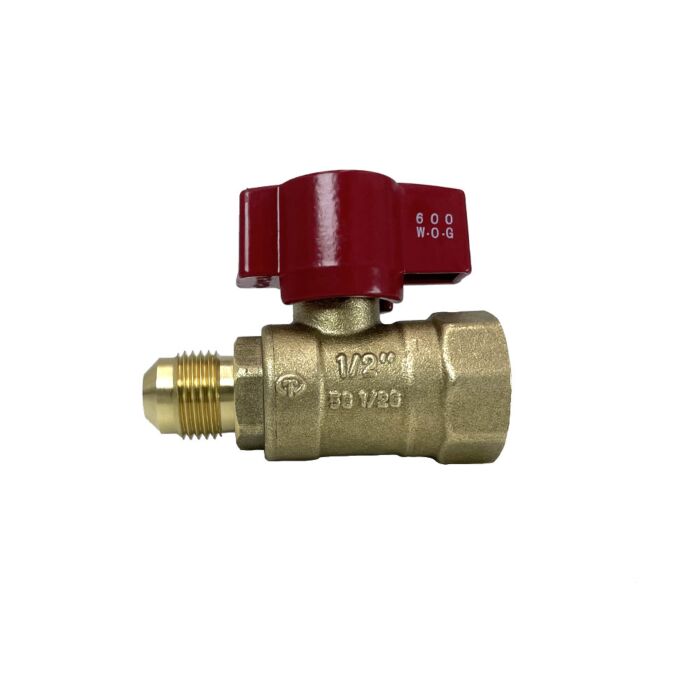

Straight Ball Valve - 1/2" Flare X 1/2" F.I.P.
$26.99
The Straight Ball Valve – 1/2" Flare × 1/2" F.I.P. provides direct inline flow control where flexible tubing meets rigid threaded piping. Designed for quarter-turn operation, this valve rapidly isolates liquids or gases during scheduled maintenance, component replacement, or emergency shutdown routines.
Its mixed-termination construction removes the need for separate bushings or converter fittings. One port accepts a half-inch flare connection for secure tube crimping or brazing, while the opposing end features half-inch female iron pipe (FIP) threads for straightforward bolting onto standard NPT risers, distribution manifolds, or equipment ports. The straight-through body geometry keeps the internal bore perfectly aligned with the pipeline axis, reducing flow restriction when the handle lies parallel to the pipe and establishing a positive metal-to-seal barrier when rotated perpendicular.
- Port configuration: ½-inch female flare paired with ½-inch female iron pipe
- Housing design: straight inline layout optimized for linear pipe runs
- Actuation type: quick-turn handle mechanism for fast open/closed cycling
- Core function: supply line isolation, service break shutoff, and emergency flow cutoff
- Installation check: verify existing tube outer diameter and pipe thread specifications prior to assembly
When troubleshooting a leak or swapping out a downstream regulator, a dedicated isolation point prevents complete drain-down and accelerates reassembly time. The compact barrel profile fits cleanly inside utility cabinets, mechanical rooms, or appliance enclosures without demanding elbow clearance. Tapered FIP threads and flare sealing surfaces compress under standard torque to maintain pressure integrity until the next service interval.
