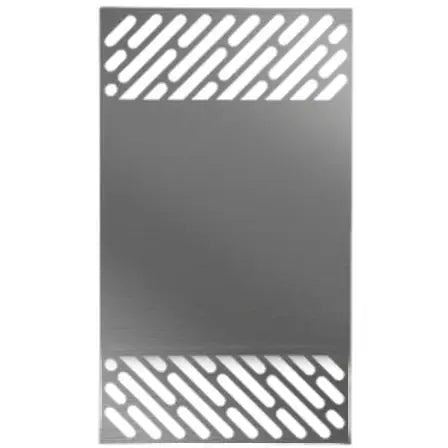

Small Union Grill Grate

Restore proper cooking geometry on your outdoor heating unit with this direct-fit Small Union Grill Grate. Designed as a structural replacement for degraded grids, it returns consistent bar spacing and reliable flare management to your cooking surface.

Part Identification and Physical Specifications

This unit carries manufacturer identifier 127-GRATE-UN-SM and weighs 7.00 lbs per EA. The specified mass establishes predictable thermal inertia, ensuring the grate retains ambient heat and limits sudden temperature drops when cold foods contact the bars.

Installation and System Alignment

• Constructed to align with standard factory mounting tabs and hinge receivers, allowing tool-free swap-out procedures.
• Supports direct positioning over burner tubes, firebrick layouts, and ceramic heat diffusers integrated into outdoor stations.
• Preserves the vertical clearance required for proper draft airflow and controlled combustion above the fuel source.

Usage Context and Catalog Reference

Integrates cleanly into a broader configuration of Grills, Grill Islands and Outdoor Kitchen Appliances, replacing compromised surfaces while maintaining overall unit balance. When restoring authentic builds for American Made Grills enclosures, this component matches the dimensional envelope and load path expected by the original chassis design. Sourced through verified Acessories and Upgrades channels, it completes scheduled maintenance cycles and extends the operational reliability of your primary cooking station.
