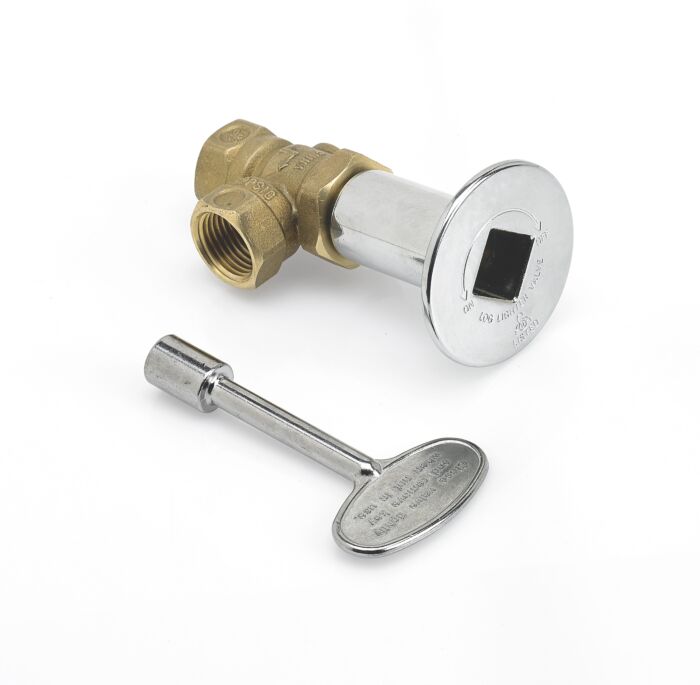

Key Valve 90 degree - 1/2" F.I.P. x 1/2" F.I.P.

Regulate gas burner output with this 90-degree key valve, precision-engineered for manual flame modulation and secondary system shut-off.

Controlled Flame Adjustment

This valve utilizes a locked stem mechanism that requires a dedicated spanner to operate, preventing accidental displacement during routine service. Users can incrementally adjust the burner flame to a specific height while retaining the ability to fully close the gas passage when not in use.

Connection Geometry & Compatibility

Both ports feature 1/2‟ female iron pipe (F.I.P.) threading, matching standard rigid and flexible gas line fittings. The 90-degree elbow design redirects pipeline flow at a right angle, simplifying routing behind walls or equipment enclosures where straight-run valves would obstruct adjacent components.

Mounting & Operation Components

• Chrome decorative wall plate anchors the valve housing securely to vertical surfaces
• 3-inch chrome gas key engages the internal spindle for positive torque during flame calibration

Verify existing piping specifications against the 1/2‟ F.I.P. standard before integration. This component serves strictly as a secondary control device and should be positioned downstream from a primary gas isolation valve in accordance with local fuel gas codes.
