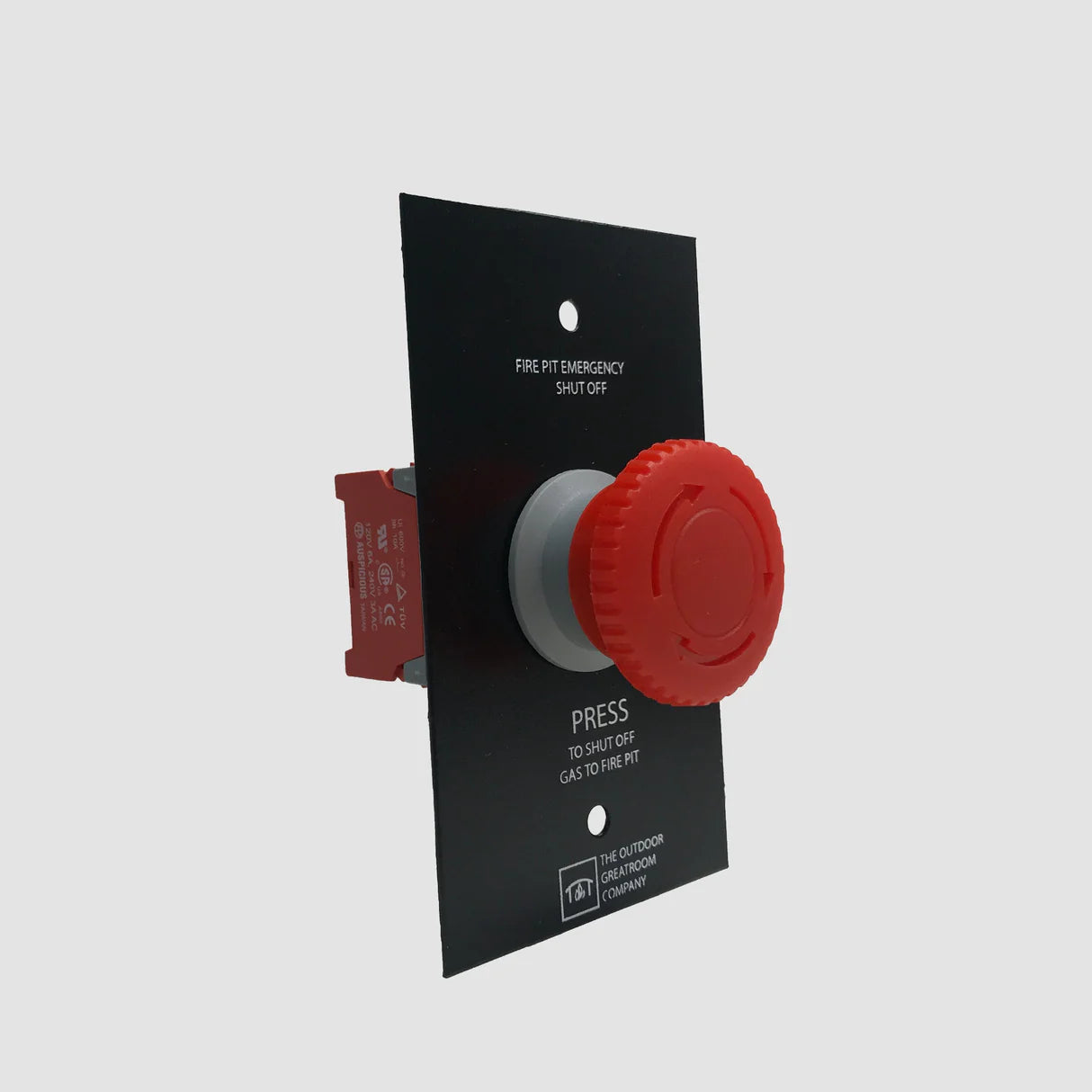

CONTROL PANEL, EMERGENCY STOP BUTTON DSI

Deliver instant circuit interruption on compatible gas heating systems with this DSI control panel featuring an integrated emergency stop switch.

Engineered as a direct replacement for failed boards, this unit interfaces exclusively with electronic ignition configurations on Crystal Fire® Plus burners and matching burner inserts. The normally closed design guarantees immediate power termination when engaged, replacing degraded or unresponsive cutoff mechanisms that compromise system reliability.

Electrical & Operational Specifications

• Rated Voltage: 120VAC @ 6A / 240VAC @ 3A
• Operating Frequency: 50 Hz and 60 Hz
• Circuit Configuration: SPST-NC (Single Pole, Single Throw, Normally Closed)
• Actuation Style: Push-button toggle requiring twist to release

The twist-to-release action functions as a deliberate safety lock, preventing automatic or accidental re-energization following an emergency shutdown. Prior to installation, verify that your burner’s wiring harness orientation aligns with the panel terminals and confirm your ignition transformer specifications remain within the listed voltage and amperage thresholds. This component restores exact factory-matched shutdown sequencing while preserving uninterrupted signal flow between your electronic ignition module and burner assembly.
