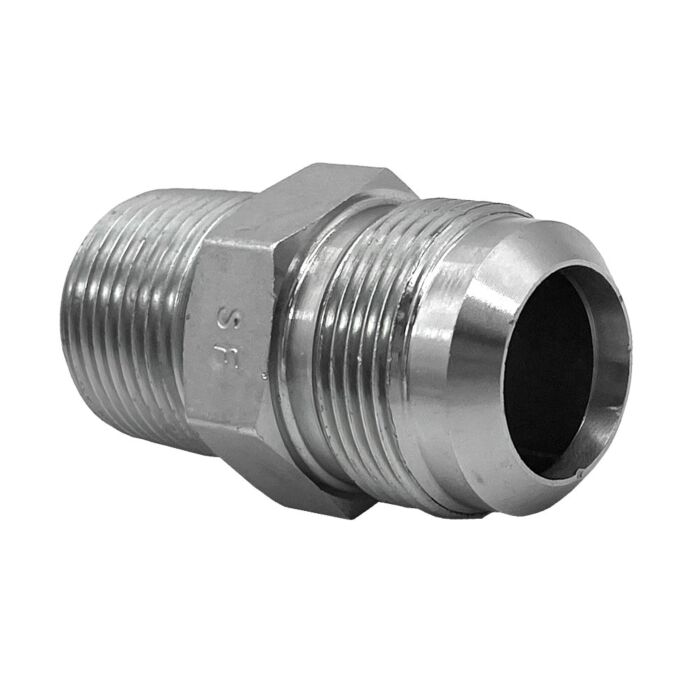

1" Flare x 3/4" MIP Coupling (Tapped 1/2" FIP)
$9.99
Convert 1-inch flare tubing to 3/4-inch male iron pipe connections while adding a dedicated 1/2-inch FIP branch point for gauges, valves, or auxiliary equipment. Machined from solid steel, this coupling replaces multiple adapters with a single component that maintains streamlined fluid paths and reduces potential leak sites.
The tapered flare face creates a metal-to-metal seat against matching ferrules or compression sleeves, delivering reliable sealing without excessive torque or liquid thread sealants. The standardized 3/4-inch MIP threads engage cleanly with female pipe ports for rapid assembly, while the precision-tapped 1/2-inch FIP port accepts plugs, nipples, or monitoring fittings. This three-way layout eliminates inventory complexity on fabrication floors where hydraulic lines, fuel rails, or compressed air systems require simultaneous diameter reduction and parallel routing.
Installation Context
- Hydraulic circuit branching and bench test rig construction
- Fuel delivery line modification and reservoir return routing
- Pneumatic manifold assembly and pressure sensor mounting
- Mobile equipment retrofit and chassis frame line replacement
Confirm thread form and operating pressure limits for your specific fluid medium before integration. Apply proper assembly lubricant to dry threads and tighten to the recommended torque schedule to avoid cross-threading or stress cracking under dynamic load cycles.
